氣門(mén)磨床

Valve lathe

Your current location: Home >> Products >> Valve lathes and grinding machines


Web:www.paulipu.com

Valve lathe

  • Taxonomy:Valve lathes and grinding machines

  • Number of clicks:
  • Release date:2018/11/01
  • More
  • Message
  • Content
  • Parameter
  • Video

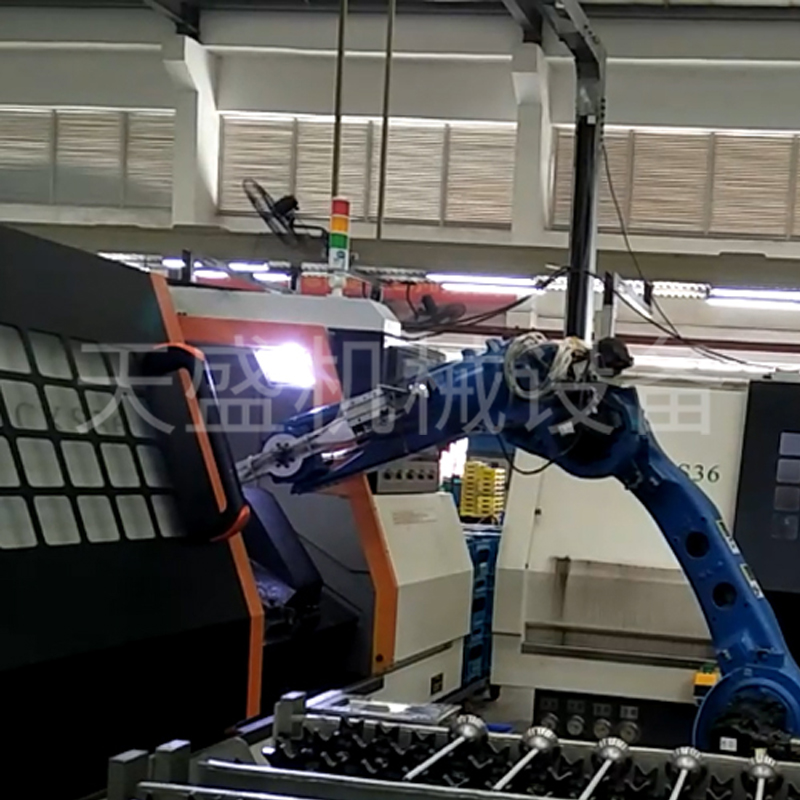

CNC Lathe (TS-XCS-01)


1. Processing range (original state of the workpiece):

Workpiece status

Processing conditions

Remarks

Disk diameter

MAX 50


Rod diameter

φ5~9


length

80~130


Material

21-4N+4Cr10Si2Mo


hardness

3060HRc


Rod beat

0.01


Disk beat

0.1



2. Machining accuracy and beat:

Part

Accuracy

Detection method and tool

Verticality

MAX 0.1mm continuously processes and measures 50 pieces.

Dedicated Gage

Dimensional accuracy

±0.005mm continuous processing and measuring 50 pieces,

Vernier caliper

Surface roughness

Continuous processing and measuring 50 pieces within Ra1.6μm,

Thickness meter


Processing efficiency (beat)

With the machining allowance 6.2 as the standard 8s/pcs


3. Main configuration:


Main structural features

Quantity

bed frame

It is cast from high-strength cast iron and then annealed to prevent deformation. The symmetrical structure design greatly improves the rigidity, vibration resistance and thermal deformation resistance of the bed. Slant bed for easy iron cutting.

1 set

Spindle

Main motor

Drive motor 7.5KW (380V/50Hz)

1 set

Drive triangle

Timing belt

Spindle

Angular contact bearing with mounting spindle (3000RPM), speed control 0~2000rpm

Feed

Feed screw

Taiwan silver ball screw

Market standard parts configuration, smooth sliding resistance, high sensitivity, low noise; repeat positioning accuracy: 0.01mm

3 set

Feed rail

Taiwan silver roller linear guide

Feed drive

Billion map servo + motor

lubricating

The main shaft adopts sealed self-lubrication, no need to fill grease in 3 years; the feed is automatic lubrication oil pump, fixed point, timing, quantitative automatic lubrication, automatic oil injection pump is out of oil, automatic operation stops, alarm flashes prompt, forced refueling.

1 set

Control System

Control System

Taiwan billion map CNC system

1. The electrical part should have certain moisture and dustproof measures to adapt to the environment of 70% humidity work site in summer.


2. There are total accumulated numbers on the operation panel, the cumulative number of shifts, the clearing, and the production timing function.


3. The machine has a computer RS232 interface, with alarm signals, counting alarms and fault alarms.


4. The device is clearly positioned as a three-color signal light.

1 set

server system

Billion graph servo

touch screen

Billion map

Air pressure configuration

Taiwan Yadeke

sensor

Autonics

Safety

Connect the switch, open the door and stop

Auxiliary

cool down

Pump auxiliary 30L/min, check valve control supply quickly

1 set

Feed

Pneumatic automatic feeding, product spacing does not collide

1 set

Discharge

Crawler type automatic discharge, product interval does not collide

1 set

use

 Three-phase five-wire system 380V/50Hz, air pressure: 0.4~0.6MPa


Total power

12kw(380V/50Hz)

Machine dimensions

1800×1200×1750

Machine weight

3000
